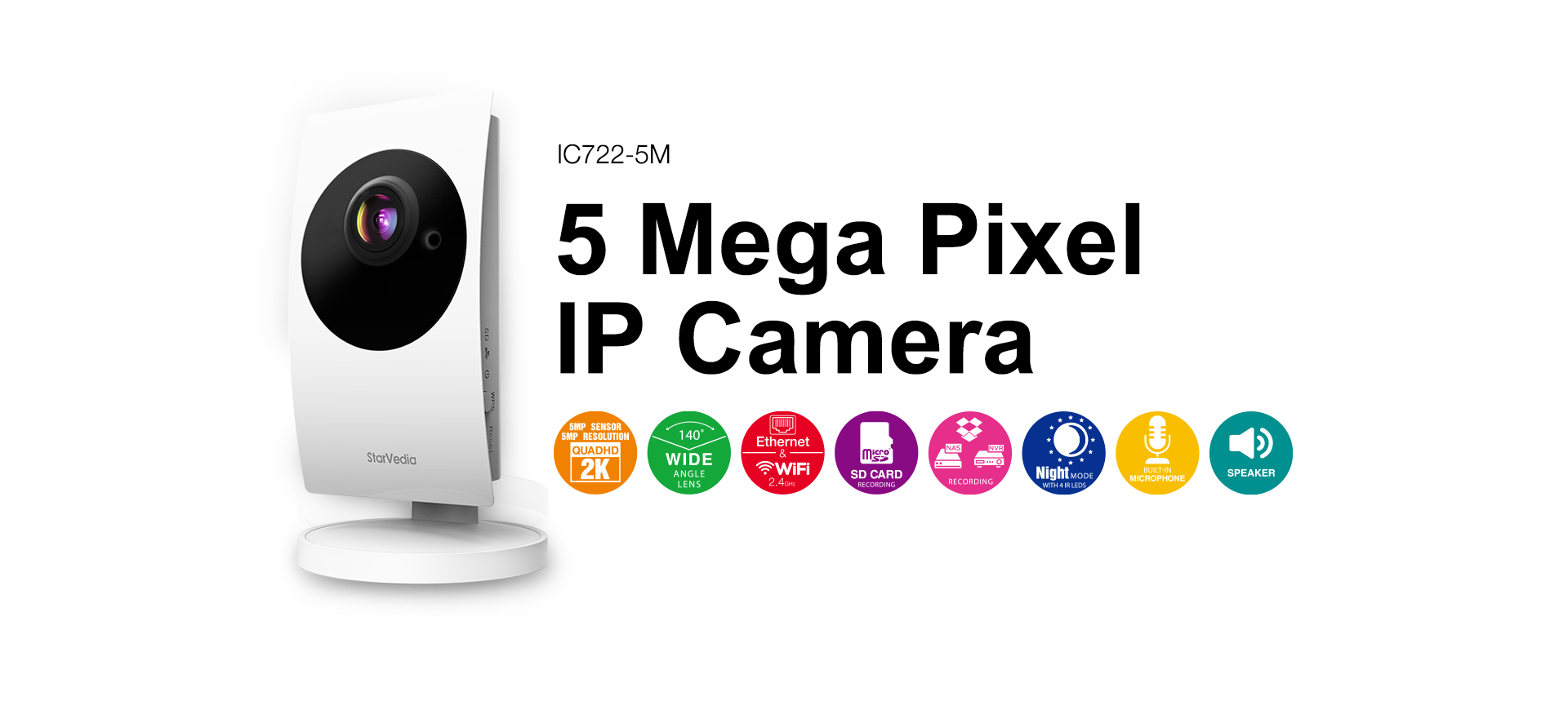

IC722-5M
Plug&Play H.264/H.265 wireless IP cameras View on iPhone/iPad and Android

Time-Lapse
Full HD wide angle Camera
The IP Camera is a 5 mega pixel camera designed for all day video surveillance on your iPhone/iPad and Android mobiles/pads. The setup is truly 1 2 3 :
1. Connect the camera to the network
2. Download the app mCamView into your iPhone/iPad or Android
3. View video by the camera ID/password



Push notification
Push notification
The push notification is supported, so that you will get the notification from your
iPhone/iPad and Android once there is any events detected through the motion
detection or sound detector on the camera, even when your mobile is on sleep mode.

SD Card
Recording on Micro SD Card
The SD card recording is supported, and you could playback the recorded video
on your iPhone/iPad and Android. You could also do the SD card r ecordin g only when
there is motion or sound detection to save the SD card storage size. The motion and
sound detected recording has a 5 seconds pre-recording, so that you will always catch recording,
so that you will always catch the critical moment.the critical moment.

Time-Lapse
Time-Lapse recording
The Time Lapse Recording is supported. The ca mera can do time lapse recording
on the SD card and you can playback the recorded time lapse video on the mobile or
tablet remotely, anywhere. This is more convenient than traditional time lapse camera
which can only be played back by removing the SD card to a computer.


cloud
Recording on NAS and on the Cloud
The NAS and cloud storage is supported. You can record the video files into any
normal NAS devices or to your Dropbox account. And you can playback those
recorded video files remotely on your mobile devices or computers.


Day & Night vision
dual lens
For day & night usage, there is an IR cut on the camera, IR filter is on for day
and o ff for night. The lens is wide angle up to 14 0 degree

Two-way Audio
2way audio
Two way audio is supported. You can monitor the synchronized video/audio and
talk to or warn the people around the camera from your iPhone/iPad and Android once
you got the push notification.


Wi-Fi Protect Setup
WPS (Wi-Fi Protect Setup)
The WPS(WiFi Protected Setup) is supported. You could set up the WiFi
connection of the camera with the router by clicking the WPS button on the camera
and on the router at the same time. No mor e complicated WiFi configuration.

The IP camera is ideal for securing small businesses, home offices and residences.
The IP Camera is a perfect replacement of the alarm system in your house and shop.

‧  5 mega pixel video resolution 2592 x 1944 for 30 fps

‧  Wide angle lens up to 14 0 degree (horizontal)

‧  Plug & play by ID/password, no IP address or DNS settings.

‧  H.264/H.265 video compression

‧  IR cut for d ay and n ight usage

‧  Two way audio.

‧  SD card video recording with 5 seconds of pre-recording..

‧  Time lapse video recording

‧  2.4GHz WiFi with WEP and WPA/WPA2 security support.

‧  WPS (WiFi Protected Setup) support.

‧  Triple video streaming on PC, mobile and SD card recording.

‧  Night mode control support automatic, manual and scheduledmodes.

‧  Connect up to 8 users simultaneously

‧  Bundle with f ree video management software CamView.

‧  Push notification on iPhone/iPad and Android for motion and sound detection.

‧  Email/ftp alarm message for motion and sound detection.

‧  Event scheduling.

‧  Video recording on NAS device.

‧  Cloud storage on Dropbox.

‧  Internal real time clock

‧  Watchdog function to prevent system failure.
MODEL
5 mega-pixel IP camera

POWER
DC 5V/1.5A

PROCESSORS
RISC CPU, hardware video processing and compression.

NETWORK INTERFACE
Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45

WIRELESS INTERFACE
2.4 GHz WiFi,
Range: 100 meters line of sight

IMAGE SENSOR
RGB 5 Mega 1/2.7 inch CMOS sensor
Automatic exposure control, automatic white balance.
automatic gain control, automatic brightness control.

LIGHT SENSITIVITY
0.2 Lux ( IR LED off )
0 Lux (with 10 meters IR LED on)
Automatically turn on the IR LED on low light environment.

LENS
M12, 2.8 mm, F1.8, viewing angle- horizontal:140°,
fixed iris. focus range: 50 cm to infinity

BUTTONS
One reset button, to factory default settings
One WPS button for automatic WiFi setup

INDICATORS
One LED for Internet connection status indication
One LED for Ethernet connection indication
One LED for SD card recording indication

VIDEO COMPRESSION
H.264/H.265, main profile

VIDEO STREAMING
Separate frame rate/resolution/bandwidth settings for PC and mobile.

VIDEO SETTINGS
Resolution: (5 mega) 2592x1944, (4 mega)2688x1520, (FHD)1920x1080, 1280x720, 640x360
Bandwidth : 3M, 2M, 1.5M, 1.2M, 1M, 768k, 512k, 256k, 128k, 64k bps
Frame rate : 1~5, 10, 15, 20, 25, 30 fps

AUDIO
Built-in microphone for audio monitoring
Built-in 0.5W speaker for alarm and half-duplex two-way audio.
Audio compression: G.711

SECURITY
Web management username/password protection
Video display ID/password protection
WiFi WEP and WPA/WPA2 security mode

INSTALLATION, MANAGEMENT AND MAINTENANCE
Plug & play by ID/password.
Video management software-CamView for video access and multi-camera management
Firmware upgrades via FTP/FTPS/HTTP

WEB BROWSING
Built-in web server for standard web browser access
Video snapshot on any browser

SUPPORTED PROTOCOLS
IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE, etc.

ACCESSORIES (INCLUDED)
Power adaptor, RJ45 Ethernet cable, quick installation guide, ID/Password card.

APP
App mCamView2 for Android and iPhone

USERS
Up to 8 simultaneous unicast users
(depends on video settings)

ALARM AND EVENT
Events triggered by motion and sound detection

MANAGEMENT
Email/ftp alarm message
Push notification on iPhone/iPad and Android devices.

DIMENSIONS WEIGHT
116 x 57 x 31 mm, bracket included
126 g, incl. camera bracket, excl. power adaptor

APPROVALS
TELEC approval for WiFi radio
Power adapter: CE, FCC, UL, EN 60950

OPERATING CONDITIONS
0-40 °C
Humidity 20 – 80% RH (non-condensing)
